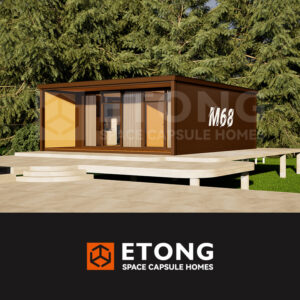

Modular Capsule House – Full Specifications

General Overview

The Etong Modular Capsule House is a prefabricated, portable living unit designed for modern housing, resorts, offices, and emergency shelters. Built with eco-friendly materials and modular technology, it offers comfort, durability, and easy installation worldwide.

---

Dimensions & Structure

• Standard Size Options:

  • 3m × 6m × 2.8m (18 m²)

  • 3m × 8m × 2.8m (24 m²)

  • Custom sizes available on request

• Expandable/Stackable: Yes (modular design allows combining multiple units)

• Weight: Approx. 3.5 – 5 tons per unit, depending on configuration

• Structure: Galvanized steel frame with anti-rust coating

---

Materials

• Exterior Walls:

  • Sandwich panel (steel + polyurethane/rock wool insulation)

  • Weather-resistant coating (UV and corrosion protection)

• Interior Walls:

  • Fire-resistant gypsum board or PVC finish

  • Optional wood/laminate panels

• Flooring:

  • Waterproof plywood base with vinyl/laminate/tile finish

• Roofing:

  • Insulated steel roof panel with water-drainage system

• Windows:

  • Double-glazed tempered glass with aluminum frames

  • Sliding or fixed options

• Doors:

  • Security steel entry door with lockset

---

Insulation & Energy Efficiency

• Wall Insulation: 50–75mm polyurethane/rock wool

• Roof Insulation: 100mm polyurethane layer

• Thermal Performance: U-value ≤ 0.35 W/m²K

• Noise Reduction: Acoustic insulation up to 40 dB

• Energy Saving: 30–50% less than traditional housing

---

Electrical System

• Standard Supply: 220V/380V, customizable per country requirements

• Wiring: Concealed copper wiring, fireproof PVC conduits

• Lighting: LED ceiling lights & wall lamps included

• Sockets/Switches: Multiple outlets per room

• Optional: Solar power system integration

---

Plumbing & Sanitation

• Bathroom: Pre-installed with toilet, sink, and shower

• Pipes: PPR hot & cold water pipes with insulation

• Drainage: PVC pipe system with anti-leak joints

• Water Tank: Optional rooftop or ground water tank

• Hot Water System: Electric or solar heater available

---

Interior Layout Options

• Single Capsule (Studio Layout):

  • Bedroom + Living area + Small Kitchen + Bathroom

• Office Capsule:

  • Open workspace, optional meeting room, bathroom

• Resort Capsule:

  • Bedroom, mini lounge, luxury bathroom, balcony option

• Expandable Multi-Unit:

  • Can be combined to form larger houses, hotels, or office complexes

---

Safety Standards

• Fireproof Materials: Fire resistance up to 2 hours

• Earthquake Resistance: Grade 7 seismic rating

• Wind Resistance: Up to 150 km/h

• Snow Load: 0.3–0.5 kN/m²

• Certification: CE, ISO9001, SGS (varies per region)

---

Optional Features & Customization

• ✅ Smart Home Integration (lighting, locks, AC control)

• ✅ Solar panels with battery storage

• ✅ Air conditioning & heating system

• ✅ Custom colors and finishes

• ✅ Furniture package (bed, sofa, kitchen set, wardrobes)

• ✅ Outdoor decking or balcony

---

Lifespan & Warranty

• Lifespan: 25–50 years (depending on maintenance)

• Warranty:

  • Structural frame: 10 years

  • Insulation panels: 5 years

  • Electrical & plumbing: 2 years

---

Shipping & Installation

• Shipping Method: Flat-pack or fully assembled (depends on customer choice)

• Transport: Fits in standard 40ft shipping containers

• Installation Time:

  • Flat-pack: 2–5 days with 3–5 workers

  • Pre-assembled: Ready on arrival

• Foundation Requirement: Simple concrete base or steel support beams

---

Typical Applications

• 🏠 Residential Housing

• 🏨 Resorts, Airbnb, & Eco-Lodges

• 🏢 Offices & Commercial Spaces

• 🏗️ Worker Accommodation

• 🚑 Emergency & Disaster Relief Housing

---

Conclusion

The Etong Modular Capsule House combines modern design, portability, and sustainability into a smart housing solution that can be shipped and installed worldwide. With customizable features, durable materials, and eco-friendly systems, it is the future of affordable and flexible living.

Modular Units

Modular Capsule House is a modular structure product developed by us. It is stylish and simple in shape. You can choose frames and PVC fabric in different colors. Different colors match up with different temperaments, simple in white, steady in black, and passionate in color.

The overall structure of the Modular Capsule House follows the aluminum frame and PVC fabric structure. The double-layer PVC fabric is inflated in the middle, and the overall shape looks round and full, forming a strong three-dimensional box structure. The full range of modular units sizes range from 2.3 meters to 12 meters in width and can be used alone or in multiple rows.

Modular Units Types:

You can custom design the wall color and pattern of the modular units. No matter what the purpose, this kind of high-value architecture and advertising effect can play a better publicity effect for the brand. You can also choose glass walls or PC panels. The whole wall adopts a transparent design, which has great lighting and transparency. If you want to protect privacy, you can also replace it with coated glass. You can choose brown, blue, dark gray, etc.

Colors:

The unique appearance of the modular units gives people a refreshing feeling. This curious product has always attracted people. If you want a temporary building with a new feel, then this product is right. It can be used for accommodation, brand events, coffee shops, convenience stores, etc.
